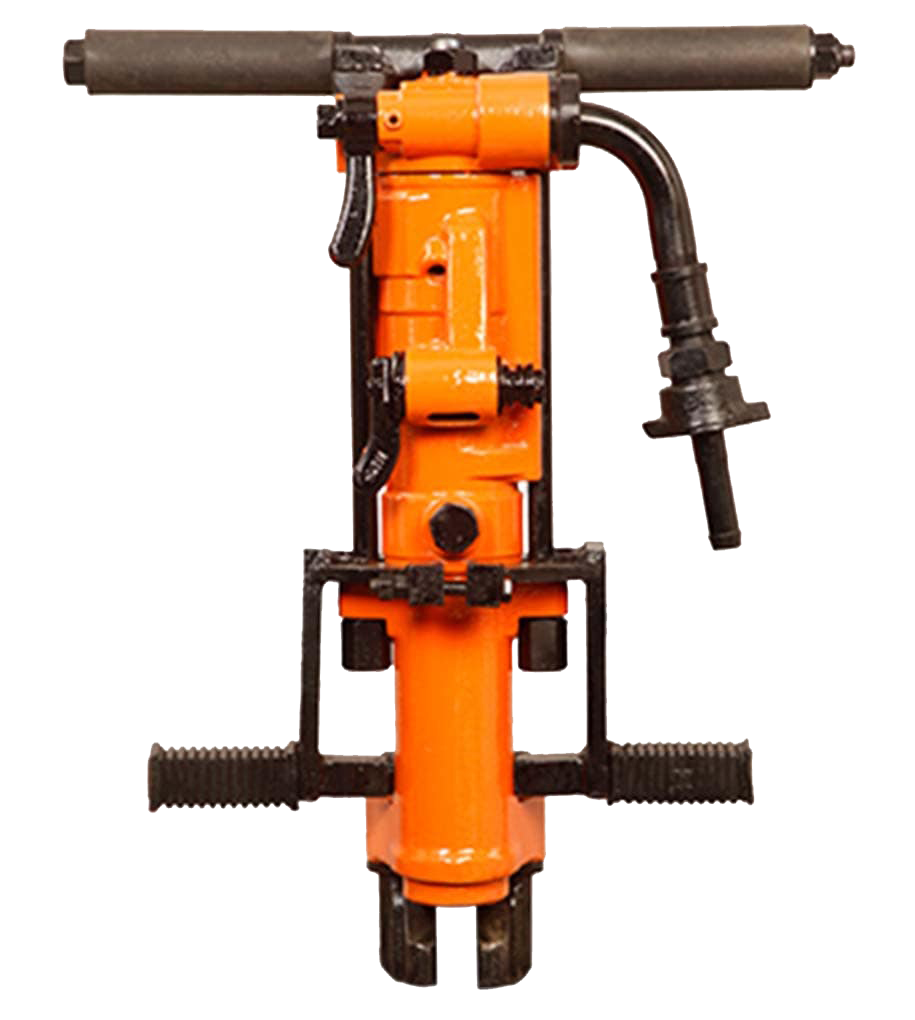

MH502AFR – Pneumatic Jack Hammer
MH502AFR pneumatic rock drill machine, robust design that makes them easy to handle in quarry-mine and general excavating work. This Sinker Drill design also provides the main valve and cylinder porting concept that helps maintain constant drilling speed throughout long service life. Working parts are constantly protected with an effective lubrication system. Pneumatic rock drill in Industrial Breakers and Demolition Hammers. The added feature is the water flushing system for underground tunnelling. Fill out the Get Quote form for the updated pneumatic rock drilling machine price.
Options
- Water flushed drilling.
- Chuck sizes – 22 mm X 108 mm (7/8 in X 4¼ in)
Ordering Part No.
| Part No. | Chuck Size |
|---|---|
| 5111 116 000 52 | 22 x 108 mm (7/8 in x 4¼ in) |
Technical Specifications:
| Weight : | 26 kg |
| Shank Size : | 22 mm x 108 mm |
| Optional Shank Size : | 25 mm x 108 mm |
| Length : | 575 mm |
| Air Consumption : | 48 l/s |
| Air Inlet : | 20 mm |
| Penetration Rate : | 425 mm/min |
| Piston Diameter : | 65 mm |
| Max Drilling Diameter : | 50 mm |
| Max Drilling Depth : | 3000 mm |
| Impact Rate : | 2100 BPM |
| Revolutions : | 180 RPM |
Key Features
- Forged steel housings withstand rugged use
- Low weight
- High Torque
- Very reliable and resistant to wear
- Large sliding face
- Long stroke machine
- High impact energy
- Good penetration in hard and soft rock
- Low spare parts consumption
- Blower for deep hole cleaning
- Robust kick-latch type retainers
