Spare Part List | Mindrill

Return To Product

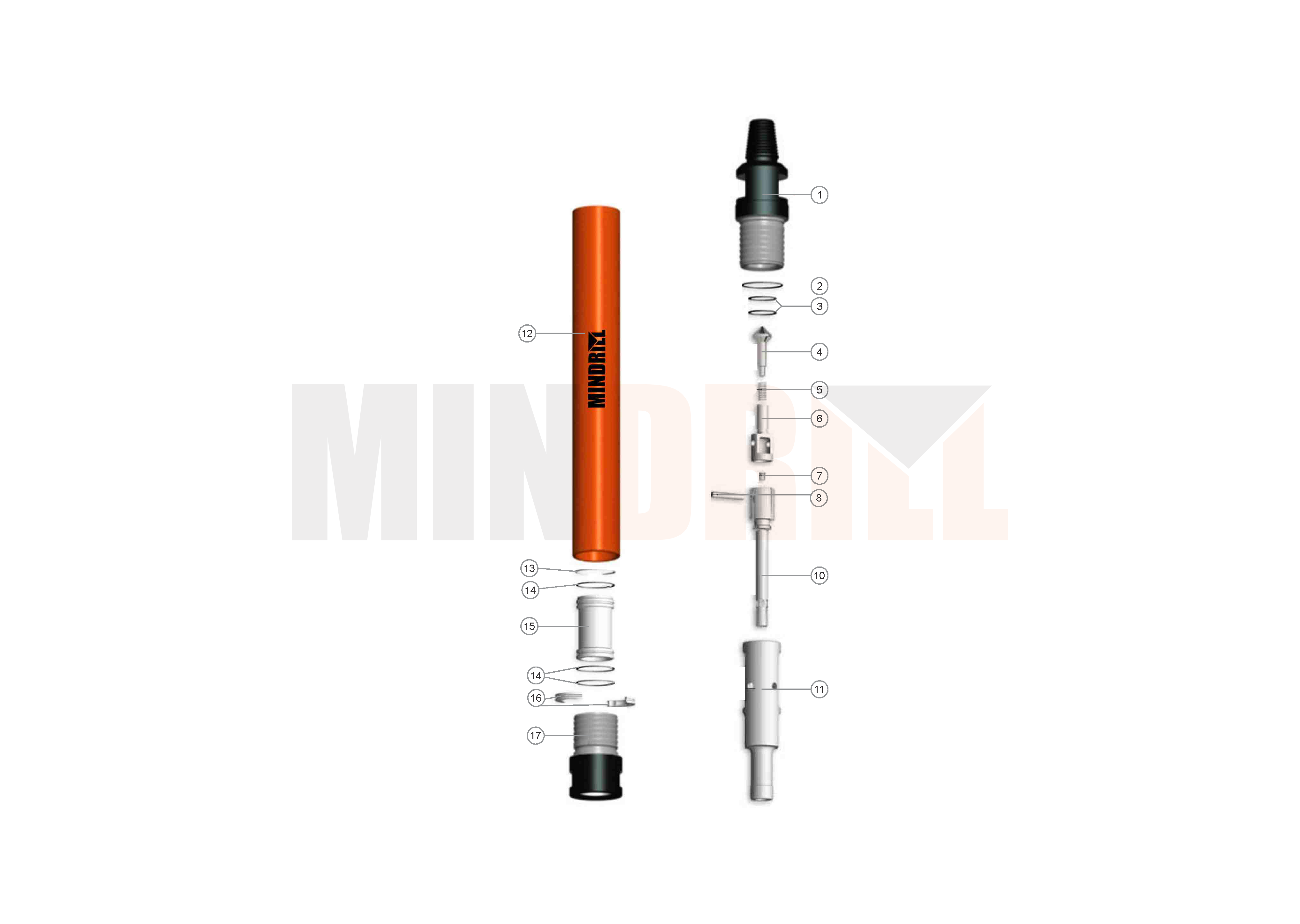

SN	Ref. Part No.	Mindrill Part No.	Description	Qty.
	34-4S4500S4-23 ARMR/1	5142 111 000	Hammer Assembly	—
1	15-4S4500-23ARM/1	5142 111 001	Top Sub	1
2	37-06603H	5142 111 002	O-Ring	1
3	37-05103H	5142 111 003	O-Ring	2
4	19-14105R	5142 111 004	Check Valve Dart	1
5	17-110513	5142 111 005	Check Valve Spring	1
6	25-4S4500	5142 111 006	Check Valve Guide	1
7	47-1120NA	5142 111 007	Choke	1
8	39-12076A	5142 111 008	Feed Tube Retainer Pin	1
10	35-4S4500	5142 111 010	Feed Tube	1
11	52-4S4500	5142 111 011	Piston	1
12	45-4S4500	5142 111 012	Piston Case	1
13	89-080430	5142 111 013	Piston Retainer Ring	1
14	37-06803H	5142 111 014	O-Rings	3
15	65-4S4500	5142 111 015	Guide Sleeve	1
16	99-070412	5142 111 016	Bit Retainer Ring	2
17	75-4S4500	5142 111 017	Driver Sub	1
18	4S4500S4K	5142 111 002 80	Seal Kit (2,3,5,7,8,13 & 14)
