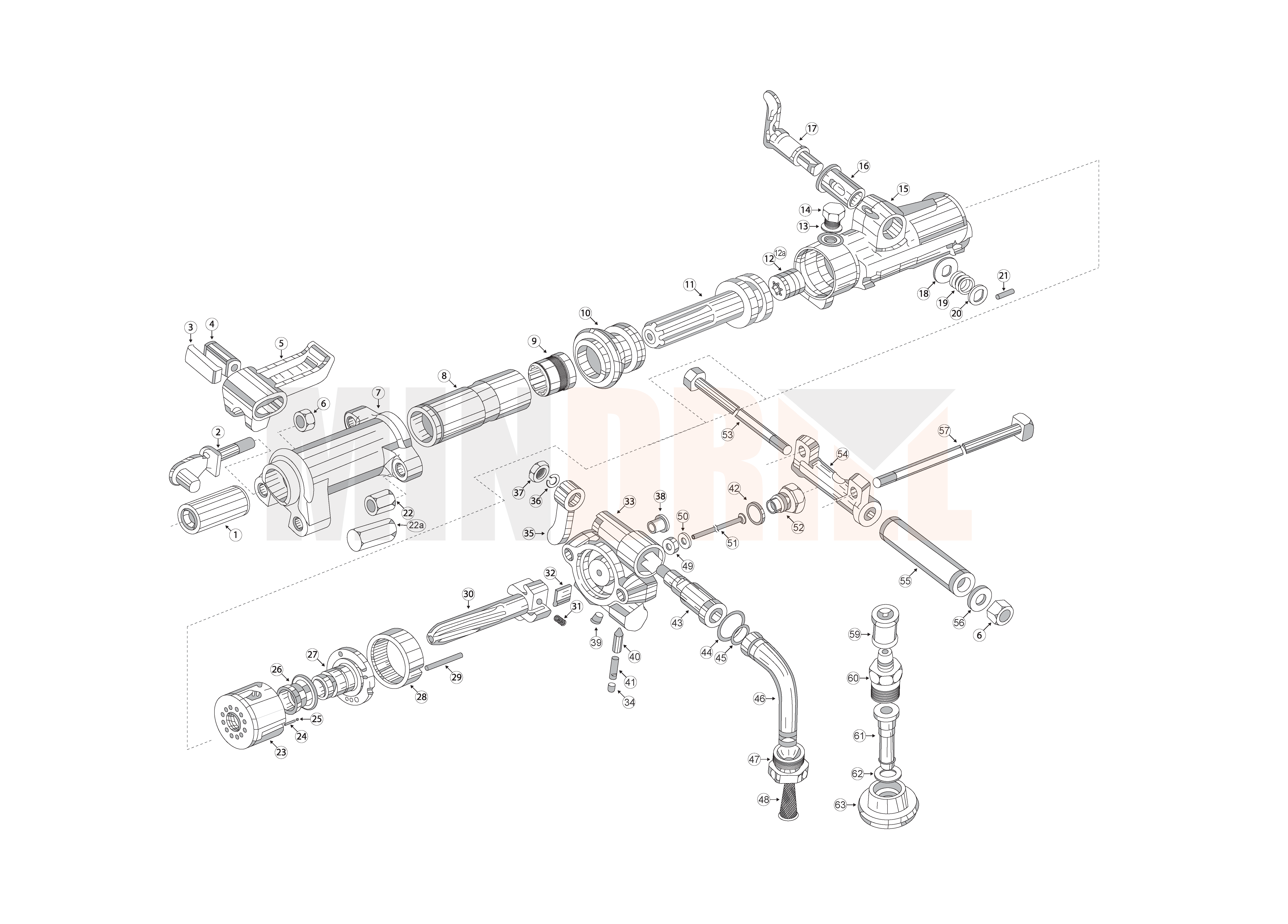

SN Ref. Part No. Mindrill Part No. Description Qty.
1 R093891 5121 116 001 Chuck -7/8″ Hex X 4 1/4″ 1
1a R093890 5121 116 001 51 Chuck -1″ Hex X 4 1/4″ (Optional) 1
2 R093896 5121 116 002 Retainer Trunnion 2
3 R093898 5121 116 003 Retainer Latch Shoe 1
4 R093897 5121 116 004 Retainer Buffer 1
5 R093913 5121 116 005 Retainer -7/8″ 1
5a R093895 5121 116 005 50 Retainer -1″ (Optional) 1
6 R005742 5121 116 006 Retainer Trunnion Nut (Nylock Nut) 3
7 R041323 5121 116 007 Front Head 7/8″Hex X4 1/4″ &1″ Hex X 4 1/4 1
8 R041324 5121 116 008 Chuck Sleeve-7/8″Hex X4 1/4″ &1″ Hex X 4 1/4 1
9 R086733 5121 116 009 Chuck Rotation Nut 1
10 – 5121 116 010 Cylinder Bushing 1
11 R000088 5121 116 011 Piston 1
12 R075839 5121 116 012 Rifle Bar Nut(Steel) 1
12a R075826 5121 116 012 50 Rifle Bar Nut (Bronze) (Optional) 1
(13-14) R085611 5121 116 013 80 Oil Plug, Complete (SN 13,14) 1
13 R091176 5121 116 013 Gasket For Oil Plug 1
14 – 5121 116 014 Oil Plug 1
(15-16) R087990 5121 116 015 80 Cylinder, Complete (SN 15,16) 1
15 – 5121 116 015 Cylinder 1
16 R086611 5121 116 016 Blower Valve Bush 1
17 R086612 5121 116 017 Blower Valve 1
18 R075777 5121 116 018 Blower Valve Washer 1
19 R075778 5121 116 019 Blower Valve Spring 1
20 R075780 5121 116 020 Blower Valve Spring Washer 1
21 R076266 5121 116 021 Blower Valve Spring Pin 1
22 R085756 5121 116 022 Side Rod Nut 2
22a – 5121 116 022 50 Side Rod Nut (Closed) (Optional) 1
23 R076264 5121 116 023 Valve Case 1
24 R085625 5121 116 024 Stem Oil Regulation 1
25 R098084 5121 116 025 Oil Regulation Plug 1
26 R076263 5121 116 026 Valve 1
27 R098085 5121 116 027 Valve Guide Bushing 1
28 R076194 5121 116 028 Ratchet Ring 1
29 R075772 5121 116 029 Valve Case Dowel 1
30 R086622 5121 116 030 Rifle Bar 1
31 R086654 5121 116 031 Pawl Spring 4
32 R075267 5121 116 032 Pawl 4
33 – 5121 116 033 Back Head 1
34 R068064 5121 116 034 Plug For Throttle Valve Plunger Spring 1
35 R079124 5121 116 035 Throttle Valve Handle 1
36 R036717 5121 116 036 Lock Washer 1
37 P002149 5121 116 037 Throttle Valve Handle Nut 1
38 R137738 5121 116 038 Bushing Blow Tube 1
39 C068799 5121 116 041 Port Plug 1
40 R086627 5121 116 042 Throttle Valve Plunger 1
41 R085671 5121 116 043 Throttle Valve Plunger Spring 1
42 R000537 5121 116 044 Water Tube Plug Gasket 1
43 R086628 5121 116 046 Throttle Valve 1
44 R110317 5121 116 047 O’ Ring For Swivel Nut 1
45 P103521 5121 116 048 O’ Ring For Swivel 1
46 R075265 5121 116 049 Air Inlet Swivel 1
47 R000530 5121 116 050 Air Inlet Swivel Nut 1
48 R005584 5121 116 051 Strainer 1
49 R075099 5121 116 052 Water Tube Rubber 1
50 R075449 5121 116 053 Water Tube Washer 1
51 R077184 5121 116 054 80 Blower Tube Comp. 1
52 R076793 5121 116 055 Air Tube Plug 1
53 R076173 5121 116 056 Handle Bolt 1
54 R086608 5121 116 057 Handle Bracket 1
55 5121 116 059 80 Rubber Handle with Liner 2
56 R000142 5121 116 060 Washer For Handle Bolt 1
57 R086623 5121 116 062 Side Rod 2
58 5121 116 090 Name Plate 1
59 5121 116 063 Coupling (3/4” NPT) (Optional) 1
60 5121 116 064 Nipple (3/4” NPT X 1 1/2” UNC) (Optional) 1
61 5121 116 065 Hose End (Optional) 1
62 5121 116 066 Washer (Optional) 1
63 5121 116 067 Union Nut (Optional) 1
