SN	Ref. Part No.	Mindrill Part No.	Parts Descriptions	Qty.
1	3121 0851 00	5121 109 001 50	Drill Steel Retainer	1
2	3121 0852 00	5121 109 002 51	Retainer Pin	1
3	0108 3392 00	5121 109 003	Tension Pin	2
4	3121 0030 00	5121 109 004	Rubber Buffer	1
5	3121 0029 00	5121 109 005	Buffer Plate	1
6	3121 0292 00	5121 109 006	Dome Nut	4
7	3121 0342 00	5121 109 007	Front Head	1
8-10	3121 0769 80	5121 109 008 80	Rotation Chuck, Comp. (H22x108) (SN. 8,9 &10)	1
8	–	5121 109 008	Rotation Chuck	1
9	3121 0023 00	5121 109 009 50	Chuck Bushing (H22x108)	1
10	3115 1221 00	5121 109 010	Chuck Nut	1
11	3121 0339 00	5121 109 011	Intermediate Part	1
12-13	3100 8478 80	5121 109 012 80	Piston Comp. (SN. 12 & 13)	1
12	–	5121 109 012	Piston	1
13	3100 9299 05	5121 109 013	Rifle Nut	1
14	3121 0337 00	5121 109 014	Cylinder	1
15	3121 0338 00	5121 109 015	Spring Outlet Valve	1
16	–	5121 109 016	Outlet Valve	1
17	–	5121 109 017	Outlet Valve Lever	1
18	3006 8734 00	5121 109 018	Conical Nut	2
19	3106 8683 00	5121 109 019	Guide Disc	1
20	3106 8682 00	5121 109 020	Ratchet Box	1
21	–	5121 109 021	Ratchet Box Pin	1
22	3101 3154 00	5121 109 022	Rifle Bar	1
23-25	3115 9200 90	5121 109 025 80	Pawl Set (4 Each & SN. 23, 24 & 25)	1
23	3100 9140 02	5121 109 023	Pressure Spring	4
24	3100 9641 01	5121 109 024	Plunger	4
25	3101 3159 00	5121 109 025	Pawl	4
26-29	3106 8680 80	5121 109 027 81	Cover Comp. With Main Valve (SN. 26, 27, 28 & 29)	1
26	3100 9665 00	5121 109 026	Guide Pin	1
27	3106 8680 00	5121 109 027	Valve Cover	1
28	3100 9894 01	5121 109 028	Cover Bush	1
29	3106 8681 00	5121 109 029	Main Valve	1
30	3115 0569 00	5121 109 030	Back Head	1
31	3121 0349 00	5121 109 031	Throttle Valve	1
32	3115 1045 00	5121 109 032	Copper Washer	1
33	3101 1371 00	5121 109 061 50	Elbow	1
34	3101 1370 00	5121 109 062 50	Adapter	1
35	3121 0329 00	5121 109 036	T-pin	1
36	3111 0136 00	5121 109 037	Spring	1
37	3121 0332 00	5121 109 038	Lock Washer	1
38	0663 2128 00	5121 109 039	O-ring	1
39	3115 0573 00	5121 109 040	Throttle Lever	1
40	3121 1372 00	5121 109 042	Handle Grip	2
41	3000 0119 01	5121 109 043	Washers	2
42 & 6	–	5121 109 045 80	Side Bolt Set (2 Each & SN. 43 & 6)	1
42	3121 0343 00	5121 109 045	Side Bolt	2
43	–	5121 109 046	Outlet Valve Pin	1
44	3121 0344 00	5121 109 034 50	Handle Bracket (LH)	1
44.1	3121 0345 00	5121 109 035 50	Handle Bracket (RH)	1
45	3121 0352 00	5121 109 048	Air Flushing Tube	1
46	3121 0336 00	5121 109 049	Packing For Air Flushing Tube	1
47	3000 9341 02	5121 109 050	Sealing Washer (Small)	1
48	3100 9623 01	5121 109 051	Adapter	1
49	3101 4146 00	5121 109 052	Sealing Washer (Big)	1
50	3100 9643 01	5121 109 053	Protective Nut	1
51	3121 0360 00	5121 109 054 80	Handle Bolt Complete with Dome Nut	1
52	–	5121 109 055	Data Plate	1

Lang »

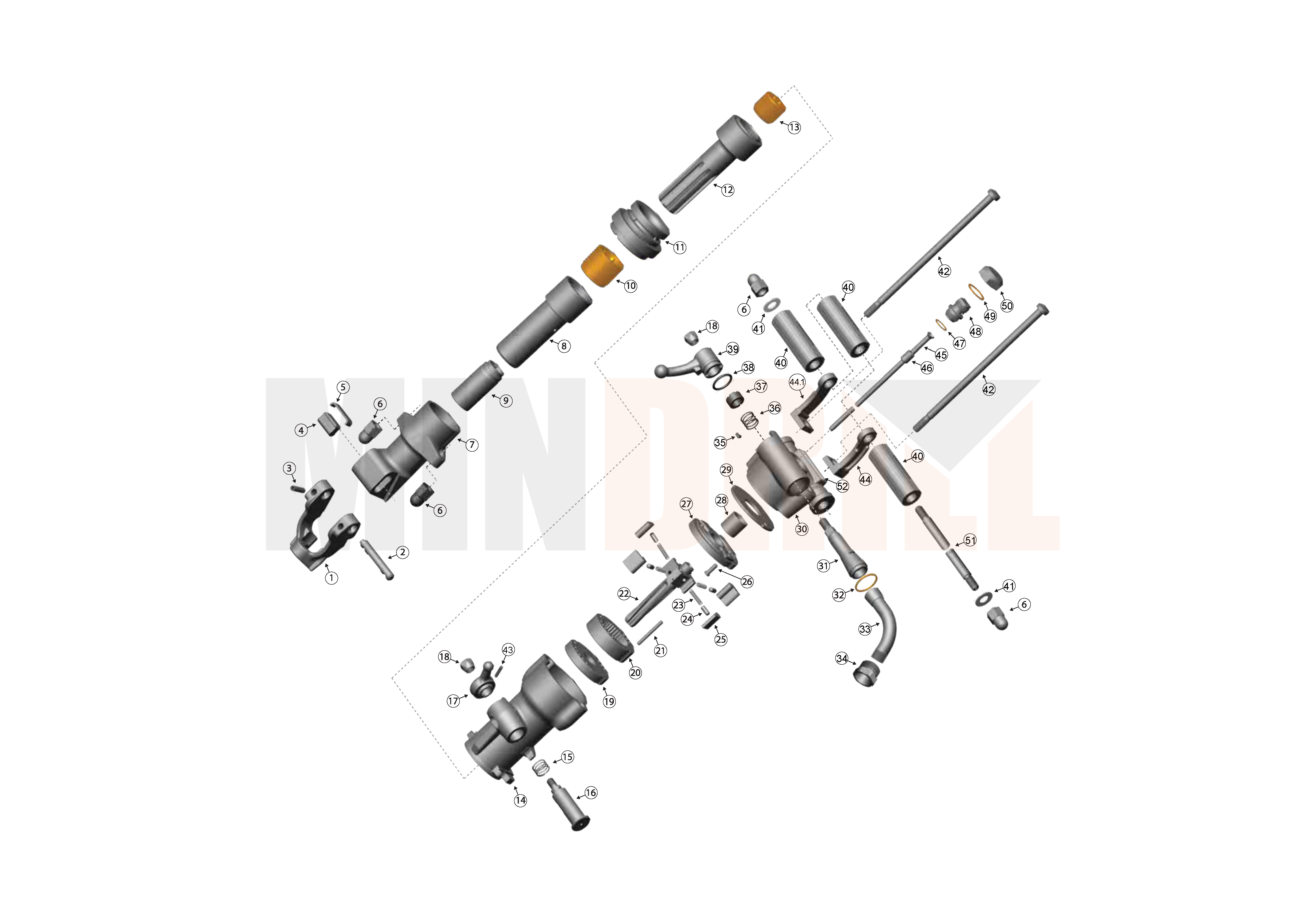

Exploded Views
