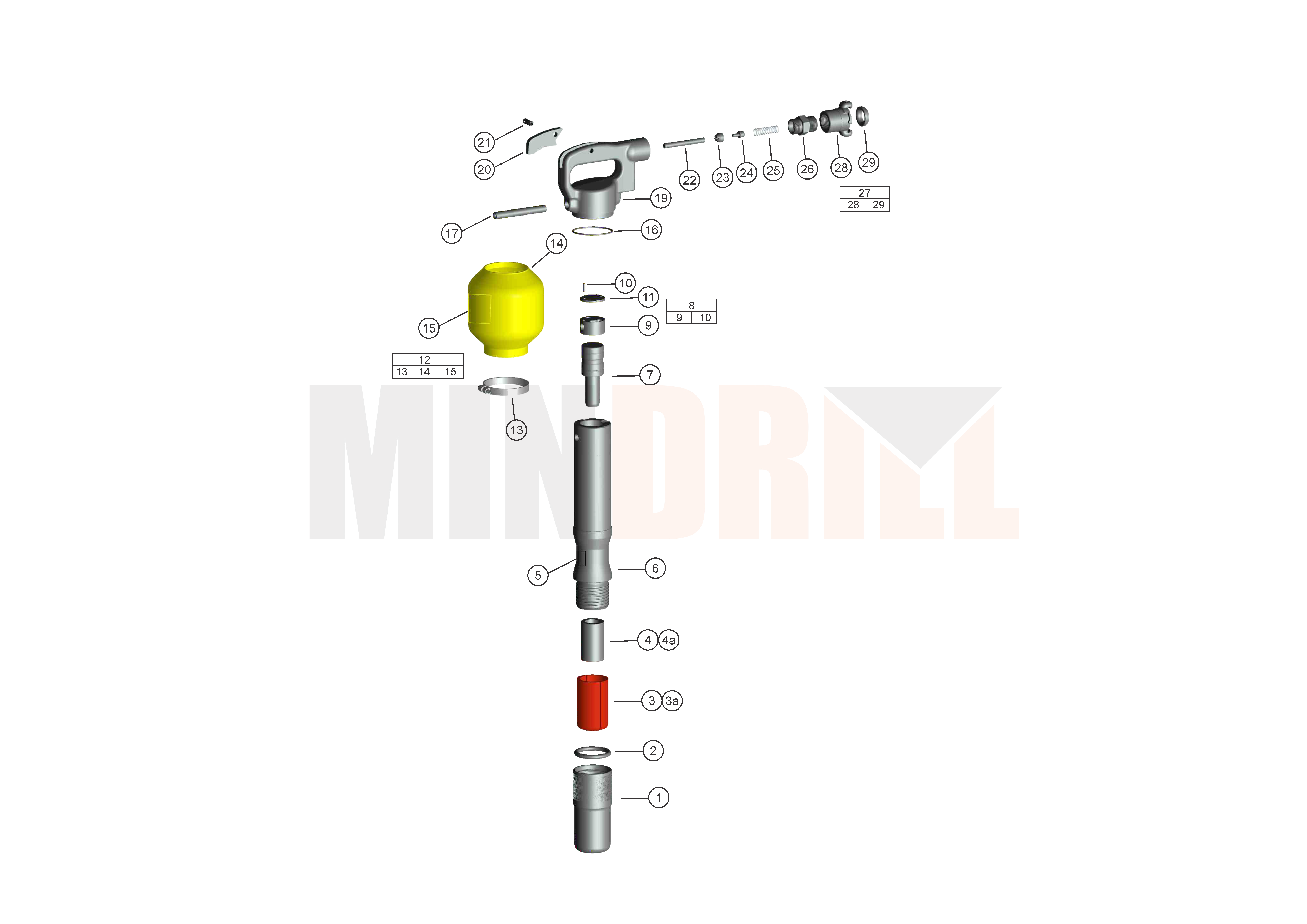

SN Ref. Part No. Mindrill Part No. Description Qty.
1 3310113700 5121 123 001 Screw cap 1
2 0663213700 5121 123 002 O-ring ø49.2×5.7 mm 1
3 3310070500 5121 123 003 Buffer, Red Hex 22×82.5 mm 1
3a 3310041700 5121 123 003 50 Buffer, Yellow Round 25×75 mm (Optional) 1
4 3310112400 5121 123 004 Chuck Hex 22×82.5 mm 1
4a 3310112300 5121 123 004 50 Chuck Round 25×75 mm (Optional) 1
5 0690110102 5121 123 005 Label 1
6 3310112500 5121 123 006 Cylinder 1
7 3310112600 5121 123 007 Piston 1
8 3310081080 5121 123 008 80 Cover,Complete (9,10) 1
9 3310081000 5121 123 009 Cover 1
10 0106095102 5121 123 010 Grooved pin ø4×15 mm 1
11 3310081100 5121 123 011 Main valve 1
12 3310112780 5121 123 012 80 Silencer,Complete (13,14) 1
13 0347611400 5221 123 013 Hose clamp ø60-75 mm (Optional) 1
14 3310112700 5221 123 014 Silencer (Optional) 1
15 3310112701 5221 123 015 Label Sound power (Optional) 1
16 3310112702 5121 123 016 O-ring 1
17 0108169017 5121 123 017 Spring pin ø12×100 mm 1
18 3310112880 5121 123 018 80 Backhead,Complete (19,21-26) 1
19 3310112800 5121 123 019 Backhead housing 1
20 3310112900 5121 123 020 Trigger 1
21 0108135500 5121 123 021 Spring pin ø8×24 mm 1
22 0102038200 5121 123 022 Pin ø8×80 mm 1
23 3310113500 5121 123 023 Inlet valve 1
24 3310113400 5121 123 024 Inlet valve rod 1
25 3310113000 5121 123 025 Spring 1
26 3310113100 5121 123 026 Nipple 1
27 9000030600 5121 123 027 80 Claw coupling,Complete (28,29) 1
28 9000030601 5121 123 028 Claw coupling 1
29 9000000000 5131 101 008 Packing 1
