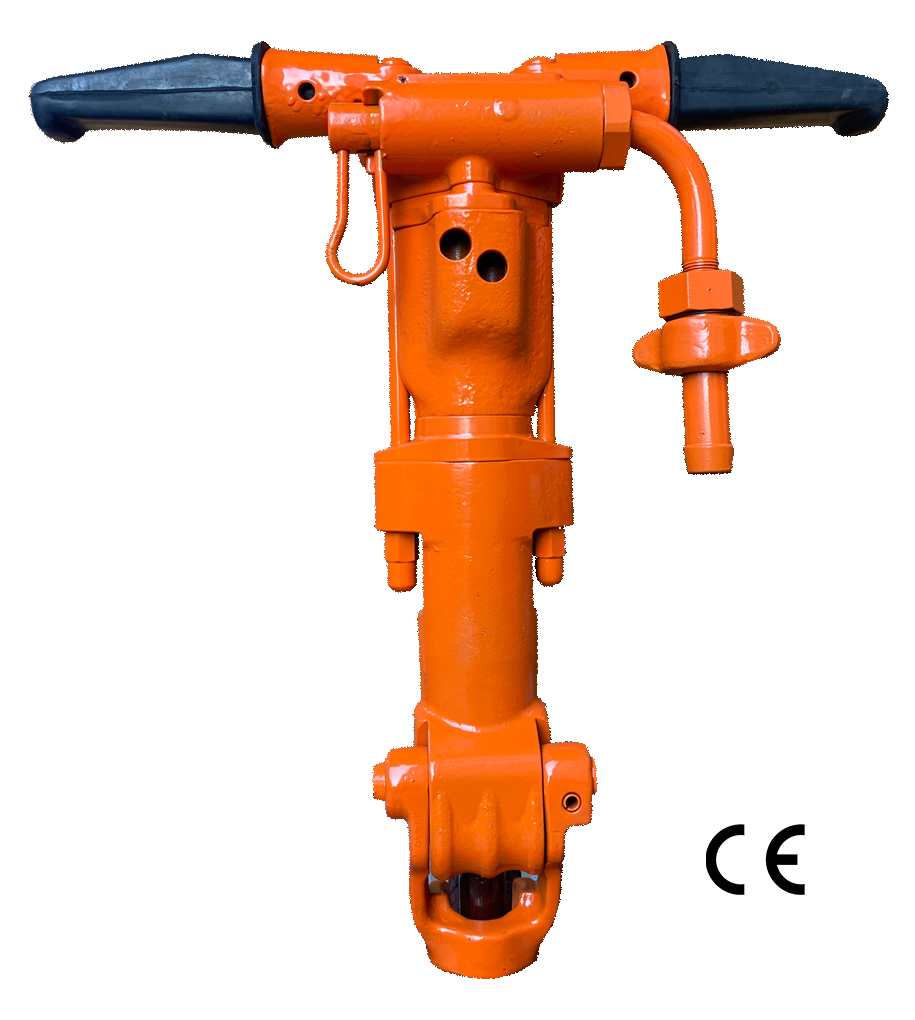

MH100T Rock Drill
Equivalent to Atlas Copco BBD 12T
The MH100T rock drill from Mindrill is a lightweight, high-performance tool designed for efficient drilling in challenging environments. Featuring a built-in air-flushing system for quicker blasting cycles, a stepless throttle for smooth collaring, and a robust kick-latch retainer for quick steel changes, it ensures maximum productivity on-site. Its T-handle design and ratchet-wheel mechanism deliver faster rotation and higher impact frequency, making it ideal for vertical work such as concrete drilling, plug hole drilling, smooth blasting, and seam drilling
Ordering Part No.
| Part No. | Chuck Size |
|---|---|
| 5111 121 000 | 22 x 108 mm (7/8 in x 4¼ in) |
Technical Specifications:
| Weight : | 11.1 kg |
| Chuck Size : | 22 x 108 mm |
| Length : | 505 mm |
| Air Consumption : | 24 l/s |
| Hose Connection: | 19 mm |
| Impact Rate : | 2580 BPM |
| Revolutions : | 220 RPM |
Key Features
- Light weight for easy handling
- Built-in air-flushing gives faster blasting cycles
- Stepless throttle for easy collaring
- Robust kick-latch retainer – change steels quickly and easily
- Parts interchangeable with Atlas Copco BBD 12T
