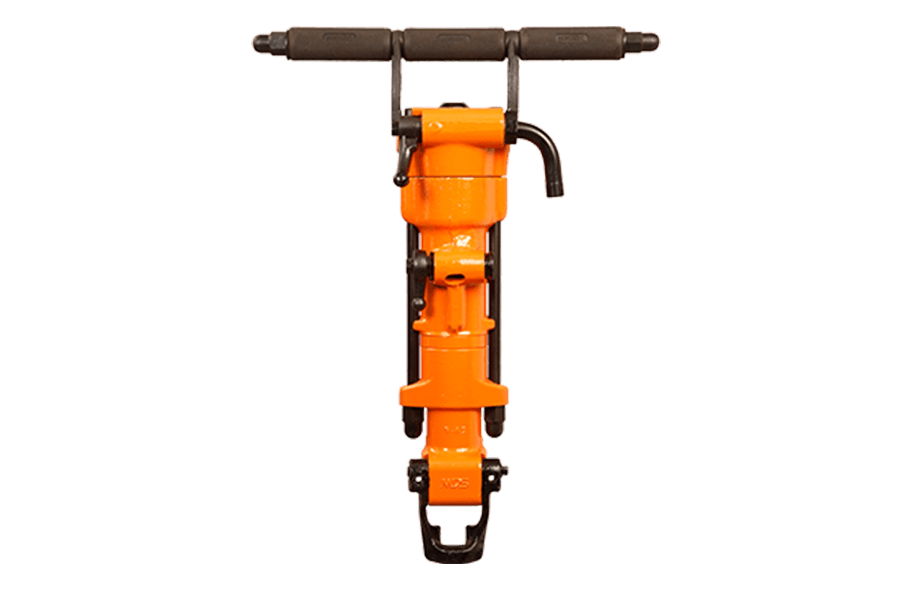

MH505L - Pneumatic Jack Hammer

The MH505L sinker drill is a time-tested and proven choice. This low-cost pneumatic jackhammer dominates the markets of India and Brazil due to its high return on investment and is designed for drilling through granite, hard-faced rock, quarry drilling, bench drilling, and drilling secondary holes for blasting. It has built-in air flushing which facilitates the removal of drill chipping to reduce the risk of drill jamming (the MH504W is its water flushed counterpart which is used for dust suppression applications). This can drill holes up to depths of 6 meters. This drill also has a robust kick-latch retainer for fast and convenient tool change.

Options

  • Water flushed drilling.
  • Air connection options – 5/8 in (16mm)X 14 BSP & 3/4 in (19mm)X14 BSP
  • Chuck sizes – 22 mm X 108 mm (7/8 in X 4¼ in) & 25 mm X 108 mm(1 in X 4¼ in)

MH505L

Ordering Part No.

Ordering Part No.

Part No. Chuck Size
5111 109 000 22 mm x 108 mm (7/8 in X 4¼ in)
5111 109 000 50 25 mm x 108 mm (1 in X 4¼ in)

Technical Specifications:

Weight : 24 kg
Chuck Size : 22 x 108 mm
Length : 565 mm
Stroke Length : 59 mm
Air Consumption : 58 l/s
Penetration Rate : 425 mm/min
Piston Diameter: 65 mm
Max Drilling Diameter: 40 mm
Max Drilling Depth: 6000 mm
Impact Rate : 2040 BPM
Revolutions : 215 RPM
Download Flyer


Key Features

  • Built-in air flushing to reduce the risk of drill jamming
  • Able to drill holes up to 6 metres deep
  • Robust kick-latch type retainer for convenient tool change
  • Market leader in India & Brazil
  • Traditional design accounts for easily available spare parts

Our Certifications



FAQ’s

Yes, the Mindrill MH505L pneumatic jackhammer is fully interchangeable with Atlas Copco’s RH 658‑5L rock drill, meaning many internal parts, spares, and consumables fit both models. This simplifies maintenance and reduces inventory costs.
The MH505L jackhammer operates efficiently at 6–8 bar air pressure with an air consumption of 3.0–4.0 m³/min, ensuring optimal performance when paired with a suitable compressor.
Benefits include: ● High impact energy for fast material removal ● Lightweight and portable design ● Minimal maintenance requirements ● Reliable operation in harsh conditions ● Versatility with different chisel types
The MH505L delivers high impact energy and consistent percussive force, making it perfect for drilling granite, quartzite, and other hard-faced rocks in quarries and construction sites.
The MH505L jackhammer dominates the markets in India and Brazil due to its high durability, powerful performance, and low cost of ownership. Contractors and quarry operators prefer it for heavy-duty drilling, offering excellent ROI compared to other pneumatic jackhammers.
