MHD100X Hydraulic Drifter
Equivalent to Sandvik HLX1 Hydraulic Drifter
The Mindrill MHD100X Hydraulic Drifter is a small but powerful float. It has a low profile and comes with built-in air wash (water wash optional). It is ideal for heavy duty DSI drilling applications including foundation drilling, road cutting, trenching, bolting and line drilling in dimensional stone quarries. Biodegradable oils can be used for both hydraulic and stem lubrication to reduce environmental impact. It can be used in dimension stone industry, stone quarries and underground mining industry
Technical Specifications:
| Dimensions & Weight | |
| Weight : | 53 kg |
| Drilling Hole Diameter : | 22-45 millimeters |
| Length: | 488 millimeters |
| Power Class: | 6.5 kilowatts |
| Percussion Rate: | 70 – 88 Hz |
| Operating pressure Percussion: | 100 – 180 Bars |
| Rotation Pre. (Max Continuous): | 100 Bar (OMM32) | 70 Bar (OMM50) |
| Rotation Pre. (Max Intermittent): | 140 Bar |
| Rotation Motor Type: | OMM32, OMM50 |
| Drill Steels | H25 Drifter Rods |
| Shanks | Male R23, R25, R28 |
Key Features
One of the most popular rockdrills in the world
- Built-in air flush (optional water flush)
- Compact size and low profile height
- Biodegradable oils can be used to reduce environmental impact
- Ideal for heavy duty DSI drilling applications including foundation drilling, road cutting, trenching, bolting and line drilling in dimensional stone quarries.
- Parts interchangeable with Sandvik HLX1 Hydraulic Drifter
Our Certifications
FAQ’s
Yes, its parts are interchangeable with the Sandvik HLX1 Hydraulic Drifter.
It's designed for heavy-duty DSI (drilling services and installations) drilling, including foundation drilling, road cutting, trenching, bolting, and line drilling in dimensional stone quarries. It's also used in the dimension stone industry, stone quarries, and underground mining.
Percussion operating pressure: 100–180 bar, which is about 1,450–2,610 psi.
The MHD100X is built to keep drilling interruptions short, mainly by making it easy to maintain and repair.
The design itself helps too. The drifter is compact and light (53 kg, 488 mm long), which makes it easier to handle and service. Air flushing is built in as standard, with water flush as an option, so there is no separate flushing system to maintain. Mindrill's CE and ISO certifications (9001, 45001, 14001) also point to consistent manufacturing quality.
Yes. Its compact design and low profile make it ideal for confined underground environments and roof-bolting rigs.
Related Products
| Weight : | 50 kg |
| Length : | 479 mm |
| Hole Diameter Drilling : | 22-45 mm |
| Power Class: | 6.5 kW |
MHD100
| Hole Diameter Drilling: | 22 – 45 mm |
| Percussion Power: | 7 kW |
| Percussion rate : | 65 – 85 Hz |
| Percussion pressure: | 100 – 180 bar |

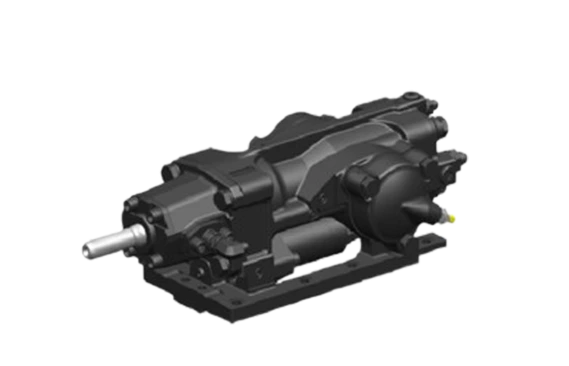

MHD106
| Weight : | 175 kg |
| Length : | 1008 mm |
| Width including connectors : | 251 mm |
| Height: | 223 kW |
| Height over drill center : | 88 mm |
MHD1838HD+
| Weight : | 210 kg |
| Drilling Hole Diameter : | 43 -64 mm |
| Reaming Hole Diameter : | 76 -127 mm |
| Power Class: | 20 kW |
| Percussion Rate : | 67 Hz |
MHD5
| Weight : | 210 kg |
| Drilling Hole Diameter : | 43 -64 mm |
| Reaming Hole Diameter : | 76 -127 mm |
| Power Class: | 20 kW |
| Percussion Rate : | 67 Hz |
MHD5
| Weight : | 210 kg |
| Drilling Hole Diameter : | 43 – 64 mm |
| Reaming Hole Diameter : | 76 -127 mm |
| Power Class: | 20 kW |
| Percussion Rate : | 67 Hz |
MHD5
