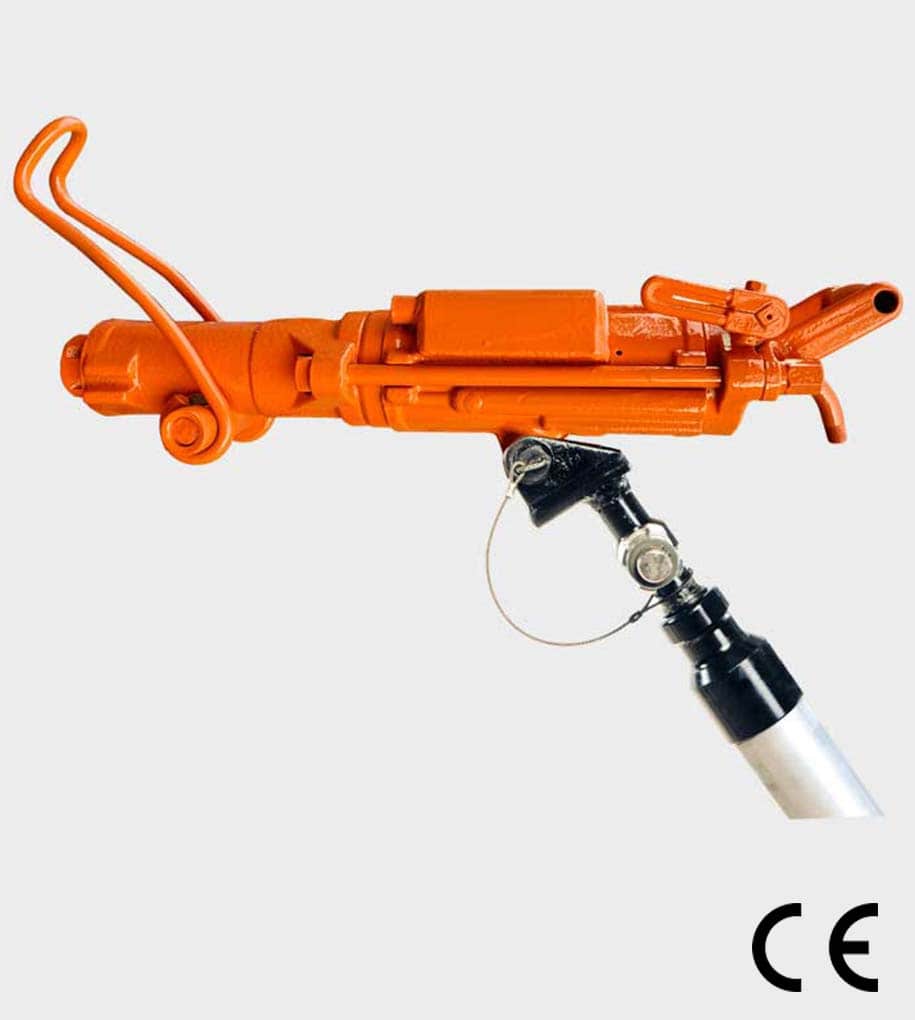

S25 Jackleg Drill Mounted Rock Drill
The Mindrill S25 Jackleg Drill leg mounted rock drill is a hard-hitting hammer ideal for development end drilling. Its relatively bigger size makes it suitable for drilling when sufficient space is available.
Ordering Part No.
| Part No. | Chuck Size |
|---|---|
| 5111 105 000 | 22 x 158 mm (7/8 in x 6 ¼ in) |
| 5111 105 000 50 | 25 x 158 mm (1 in x 6 ¼ in) |
Technical Specifications:
| Weight : | 31 kg |
| Stroke : | 70 mm |
| Length incl. Drill Steel retainer : | 760 mm |
| Air Consumption : | 145 @ 500 kPA |
| Impact Rate : | 2000 @ 500 kPA |
Key Features
- High penetration speed
- Rig mount option for dimensional stone and quarrying applications
- Ideal for development of end drilling
- Hard hitting machine with versatile applications
- Can be used to install roof bolts
Our Certifications
Related Products
| Weight : | 34.3 kg |
| Air consumption @6 Bar : | 83 l/s |
| Stroke length : | 67.7 mm |
| Air Hose Connection : | 25 mm |
| Impact rate : | 2300 BPM |
MJ250
| Weight : | 32.4 kg |
| Length without Leg : | 688 mm |
| Piston diameter : | 76 mm |
| Water Connection : | 13 mm |
| Impact rate : | 2256 BPM |
MJ83
| Chuck Size : | 22×108 mm |
| Piston diameter : | 79.4 mm |
| Stroke length : | 67.7 mm |
| Water Connection : | 13 mm |
| Impact rate : | 2300 BPM |
MS250
| Weight : | 22.6 kg |
| Stroke : | 55 mm |
| Length incl.: | 730 mm |
| Air Consumption : | 116.5 @ 500 kPA |
| Impact Rate : | 2175 @ 500 kPA |

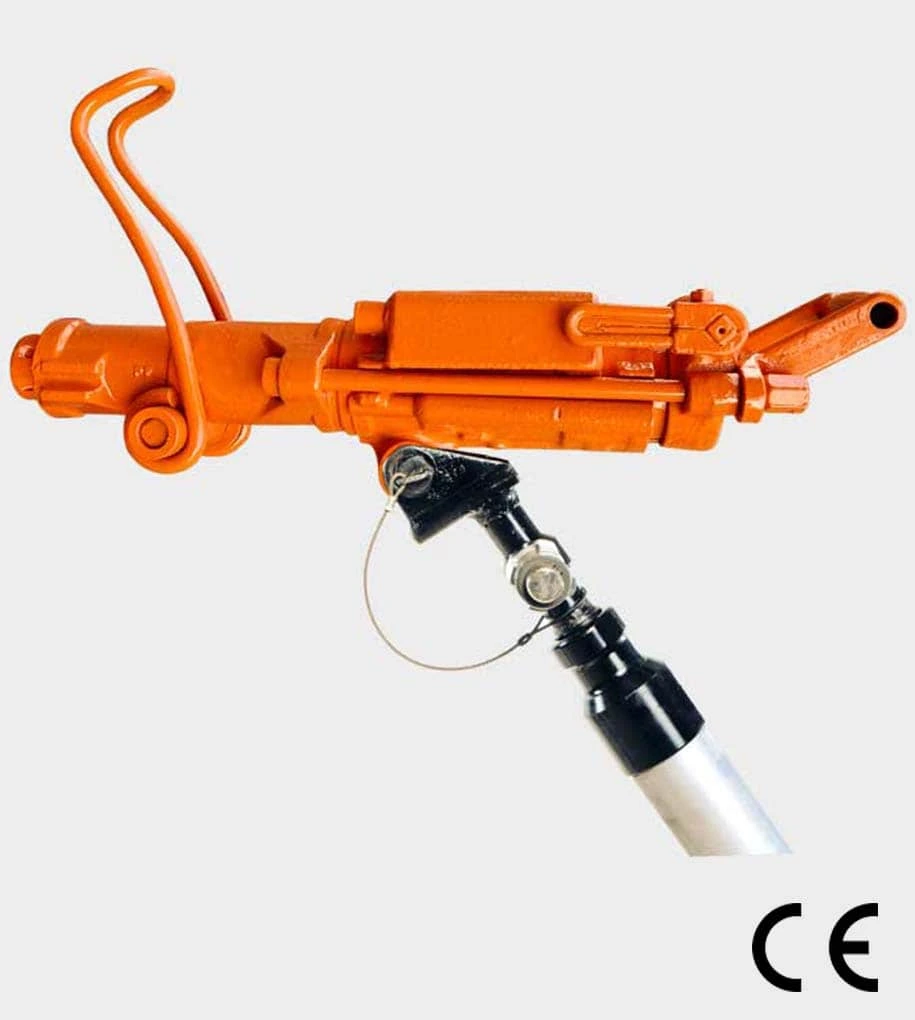

S215
