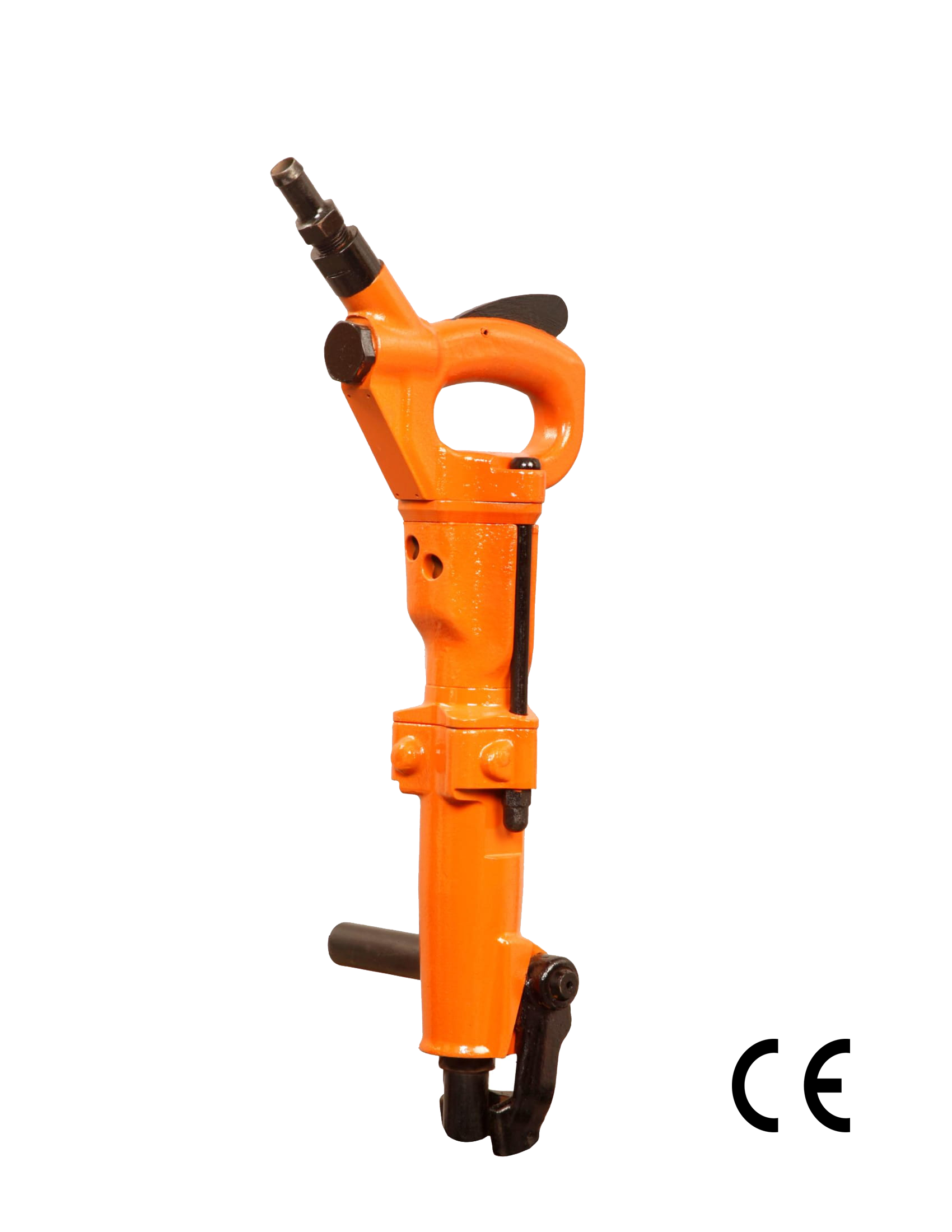

MH100D Rock Drill
Equivalent to Atlas Copco BBD 12D
At a net weight of just about 10 kilograms (23 pounds), the MH100D with an ergonomic D-type handle is an attractive choice for horizontal drilling of up to 1 meter (3.3 feet) in tight places. This lightweight and small-size drill are ideal for plug hole drilling, anchor and wedge drilling. Despite its small form factor it still carries the high performance and unparalleled reliability of every Mindrill product.
Options
|
Ordering Part No.
| Part No. | Chuck Size |
|---|---|
| 5111 119 000 | 19 x 108 mm (3/4 in x 4¼ in) |
| 5111 119 000 50 | 22 x 108 mm (7/8 in x 4¼ in) |
Technical Specifications:
| Length : | 565 mm |
| Weight : | 9.8 kg |
| Bore Diameter : | 17 mm x 29 mm |
| Stroke Length : | 41 mm |
| Air Consumption : | 24 l/s |
| Penetration Rate: | 230 mm/min |
| Piston Diameter: | 45 mm |
| Revolutions : | 220 RPM |
| Impact Rate : | 2580 BPM |
Key Features
- Integral oiler provides continuous & efficient lubrication
- Graduated ratchet throttle control ensures accuracy in collaring holes
- Tough latch retainer provides extra support to collar and reduces wear
- T-handle for increased comfort
- Blower lever for deep hole cleaning
- High speed drilling
- Low maintenance
- Parts interchangeable with Atlas Copco BBD 12D
