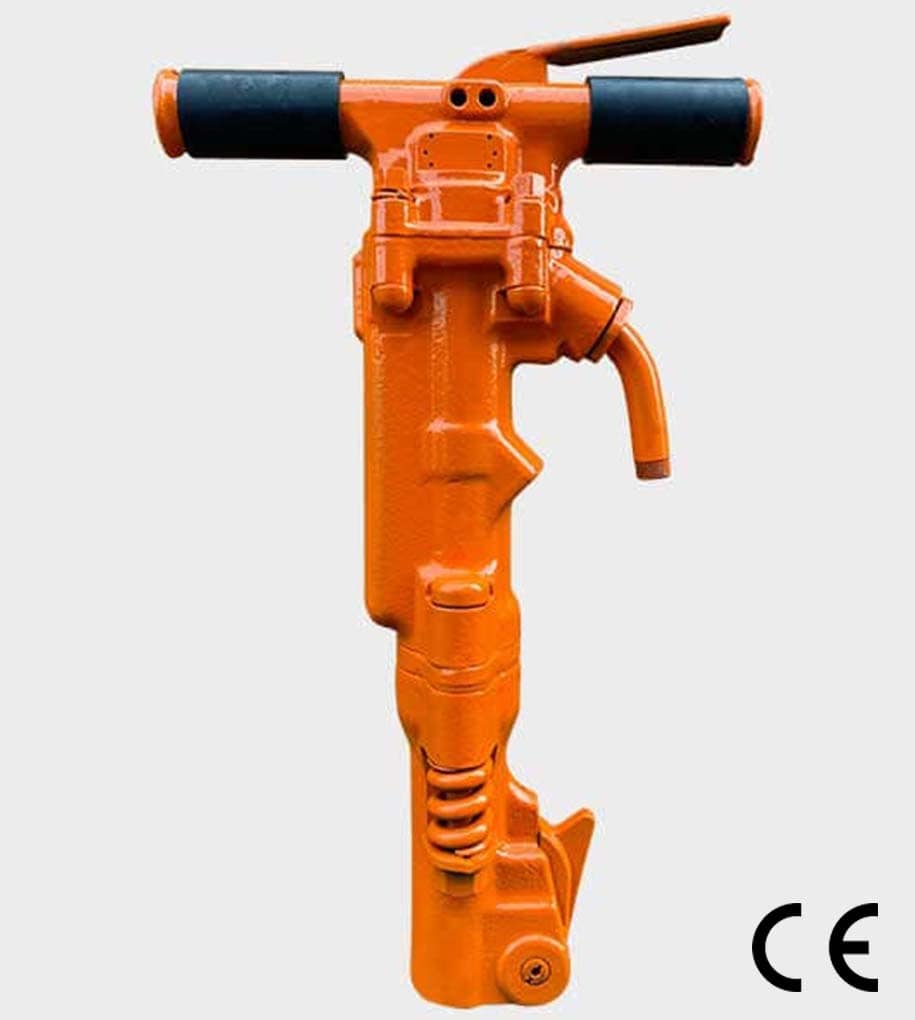

MPB1230 Pneumatic Breaker
The MPB1230 Pneumatic Breaker is the heavy counterpart of the MPB1210. Concrete breaker and is used for tough construction and plant maintenance work like breaking reinforced concrete, heavy road work, cutting tarmac, frozen ground or non-consolidated rock and general demolition work. They come with an integral oiler and reversible piston mechanism to reduce maintenance costs and minimize downtime.
Ordering Part No.
Without Silencer:
| Part No. | Chuck Size |
|---|---|
| 5112 103 000 | 32 x 160 mm (1¼ in x 6 ¼ in) |
With Silencer:
| Part No. | Chuck Size |
|---|---|
| 5112 103 000 50 | 32 x 160 mm (1¼ in x 6 ¼ in) |
Technical Specifications:
| Weight : | 31 kg |
| Length : | 680 mm |
| Air Consumption : | 32 l/s |
| Stroke Length: | 212 mm |
| Hose Connection : | Ø 19 mm |
| Impact Rate: | 1300 BPM |
Key Features
- Made for tough construction and heavy duty surface jobs
- High impact power to weight ratio
- Integral oiler for continuous lubrication
- Reversible piston to reduce maintenance costs
- Can be used with various shank sizes
- Parts interchangeable with Chicago Pneumatic CP 1230
