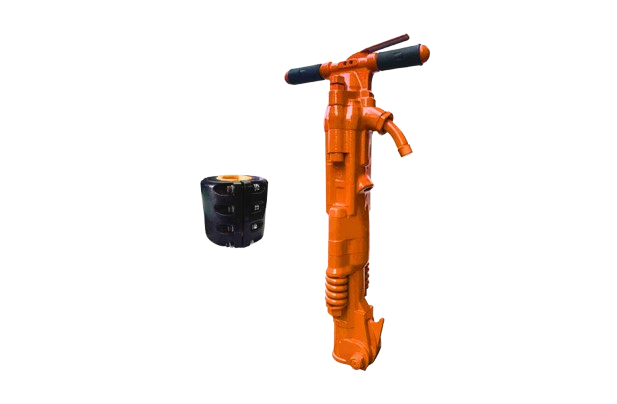

MPB117L Paving Breakers
The MPB117L is ideal for heavy-duty breaking tasks, offering a powerful blow impact while maintaining low air consumption and a lightweight design. Equipped with an integrated oiling system, this drill ensures smooth operation and comes in two different shank size options for versatile use.
Ordering Part No.
Without Silencer:
| Part No. | Chuck Size |
|---|---|
| 5112 101 000 50 | 32 x 160 mm (1 ¼ X 6 ¼ in) |
With Silencer:
| Part No. | Chuck Size |
|---|---|
| 5112 101 000 52 | 32 x 160 mm (1 ¼ X 6 ¼ in) |
Technical Specifications:
| Weight : | 38 kg |
| Length : | 710 mm |
| Air Consumption : | 41 l/s |
| Piston Diameter : | 57.15 mm |
| Hose Connection : | Ø 19 mm |
| Stroke: | 165 mm |
| Impact Rate: | 1200 BPM |
Key Features
- Continuous lubrication via built-in oil lubricator for smooth performance
- Ergonomically designed for optimal user comfort
- Superior durability with alloy steel forgings
- Enhanced longevity with latch-type retainer
- Quick access points for easy daily maintenance
- Parts interchangeable with Chicago Pneumatic CP 117L
Our Certifications
Related Products
| Weight : | 35 kg |
| Length : | 740 mm |
| Air Consumption : | 35 l/s |
| Hose Connection : | Ø 19 mm |
| Impact Rate: | 1080 BPM |
MPB117
| Weight : | 20 kg |
| Length : | 540 mm |
| Air Consumption : | 26.5 l/s |
| Chuck Size : | 25 x 108 mm |
| Hose Connection : | 19 mm |
| Impact Rate: | 1400 BPM |
MPB1210
| Weight : | 31 kg |
| Length : | 680 mm |
| Air Consumption : | 32 l/s |
| Hose Connection : | Ø 19 mm |
| Stroke Length : | 212 mm |
| Impact Rate: | 1300 BPM |
MPB1230
| Weight : | 37.5 kg |
| Length : | 735 mm |
| Air Consumption : | 40 l/s |
| Hose Connection : | 19 mm |
| Impact Rate: | 1300 BPM |
MPB1240
| Weight with silencer : | 31 kg |
| Lenght: | 680 mm |
| Weight without silencer : | 29 Kg |
| Air pressure : | 6 Bar |
| Air consumption : | 34.5 l/s |
MPB1260
| Weight with silencer : | 39 kg |
| Weight without silencer : | 37 kg |
| Length : | 730 mm |
| Air pressure : | 6 bar |
| Air consumption : | 43 l/s |
| Blows per minute: | 1100 |
MPB1290
