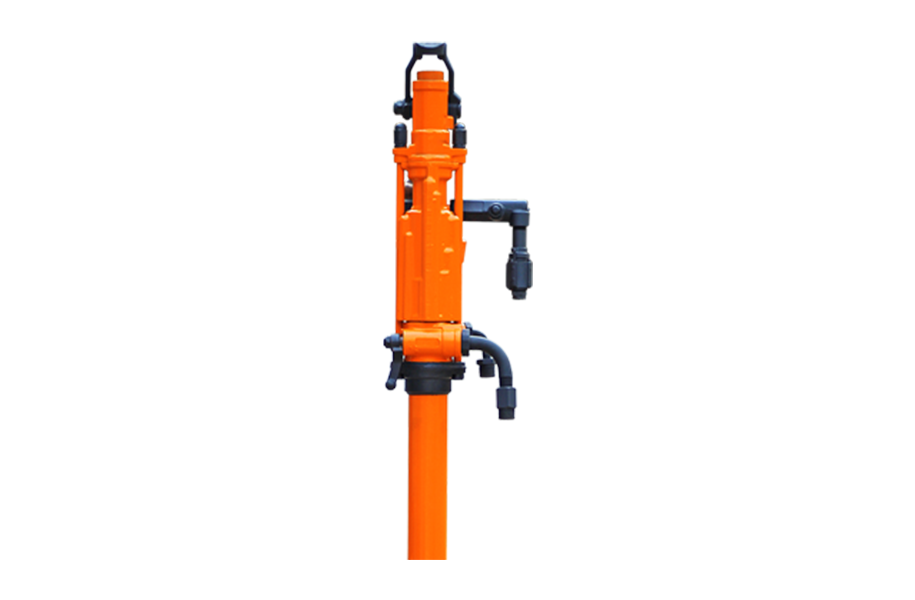

MST250 Stoper Drill
The MST250 Stoper Drill configuration helps miners to drill vertically upside-down with minimum effort and risk to ensure drilling in uncompromised orientations to maintain desired productivity. The stopper leg attachment does not affect the high penetration rate and still allows the drill to achieve high torque at low air pressures. The stoper leg configuration ensures the safety of the operator and increases the life of the drill simultaneously. The ergonomically designed stoper leg has a push button to retract the stoper leg and an adjustable motorcycle control feed.
Ordering Part No.
Ordering Part No.
| Part No. | Chuck Size | Air Connection |
|---|---|---|
| 5111 148 000 2225 | 22 mm x 108 mm | 25 mm (1”) |
| 5111 148 000 2525 | 25 mm x 108 mm | 25 mm (1”) |
Technical Specifications:
| Weight : | 42 kg |
| Bore Diameter : | 80 mm |
| Stroke Length : | 73 mm |
| Impact Rate : | 2200 BPM |
| Air Consumption : | 82 l/s |
| Air Supply Hose ID : | 25 mm |
| Water Supply Hose ID: | 13 mm |
Key Features
Our Certifications
Related Products
| Weight : | 34.3 kg |
| Air consumption @6 Bar : | 83 l/s |
| Stroke length : | 67.7 mm |
| Air Hose Connection : | 25 mm |
| Impact rate : | 2300 BPM |
MJ250
| Weight : | 32.4 kg |
| Length without Leg : | 688 mm |
| Piston diameter : | 76 mm |
| Water Connection : | 13 mm |
| Impact rate : | 2256 BPM |
MJ83
| Chuck Size : | 22×108 mm |
| Piston diameter : | 79.4 mm |
| Stroke length : | 67.7 mm |
| Water Connection : | 13 mm |
| Impact rate : | 2300 BPM |
MS250
| Weight : | 22.6 kg |
| Stroke : | 55 mm |
| Length incl.: | 730 mm |
| Air Consumption : | 116.5 @ 500 kPA |
| Impact Rate : | 2175 @ 500 kPA |
S215
| Weight : | 31 kg |
| Stroke : | 70 mm |
| Length incl.: | 760 mm |
| Air Consumption : | 145 @ 500 kPA |
| Impact Rate : | 2000 @ 500 kPA |
S25
