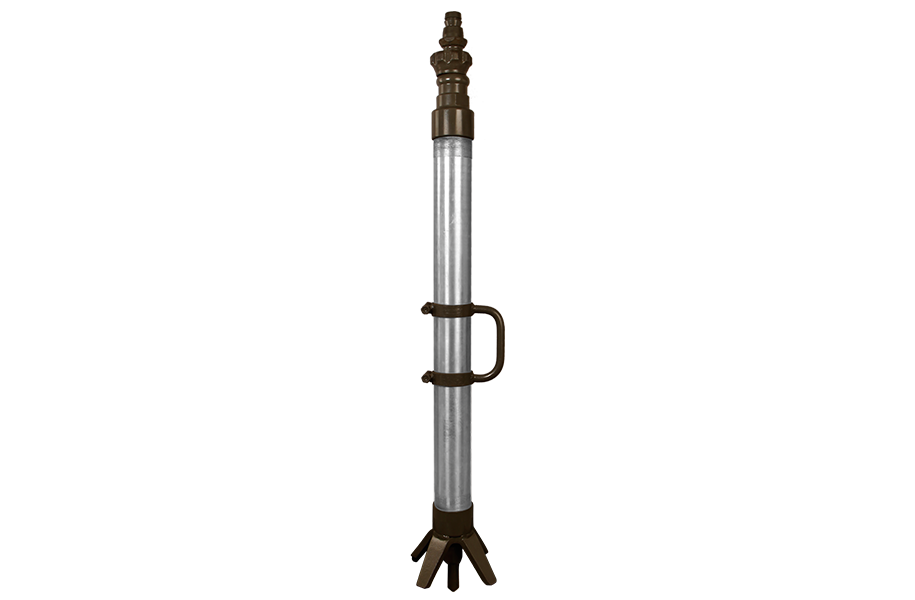

The A755 is the undebatable choice when it comes to pusher legs for small applications. its basic and hassle-free design makes the operation intuitive and it takes no time for operators to get used to it, saving time and money. With a feed control knob positioned right at the operator’s fingertips, Pusher leg rock drills A755 makes the drilling operation much more manageable and under control. The large piston diameter accounts for high feed force whilst keeping the impact pressure low due to the high surface area of contact, thus increasing machine productivity and product life.
Ordering Part No.
Ordering Part No.
| Part No. | Feeding Length |
|---|---|
| 5115 101 000 | 51” |
| 5115 101 000 50 | 39” |
| 5115 101 000 51 | 30” |
Technical Specifications:
| Weight : | 13.6 kg |
| Piston Diameter : | 65 mm |
| Feeding Length : | 1295mm |
| Length Extracted : | 2998 mm |
| Length Retracted : | 1703 mm |
Key Features
- Feed control at optimum position.
- Large piston diameter for high feed force and long product life.
- Intuitive, hassle-free usage.
- Simple and robust design.
- Low cost.
