MHD106 Hydraulic Drifter
Sandvik RD106 Hydraulic Equivalent
The MHD106 Hydraulic Drifter is engineered for optimal performance with a maximum recommended hole diameter of 45 mm. It excels in various applications, including foundation drilling, road cutting, trenching, bolting, line drilling in dimensional stone quarries, and other specialized drilling tasks. This compact hydraulic percussive top hammer rock drill features a low-profile design and operates with either air or water flushing. Additionally, the MHD106 is environmentally friendly, as it allows the use of biodegradable oils for both hydraulic and shank lubrication, minimizing environmental impact.
Key Features
- It excels in various applications, including foundation drilling, road cutting, trenching, bolting, line drilling in dimensional stone quarries, and other specialized drilling tasks.
- It is low-profile design and operates with either air or water flushing
- Parts interchangeable with Sandvik RD106 HYDRAULIC ROCK DRILL
Our Certifications
FAQ’s
Yes. The Mindrill MHD106 hydraulic drifter is designed as an equivalent to the Sandvik RD106 class hydraulic rock drill and can be used on compatible drill rigs with similar mounting arrangements, hydraulic connections, and feed beam systems.
Email: salessupport@mindrill.com
Email: salessupport@mindrill.com
The MHD106 is recommended for drilling hole diameters up to approximately 45 mm, depending on the drill bit type, drilling parameters, and rock conditions.
The MHD106 typically operates at a percussion working pressure of around 100–180 bar. Maintaining proper hydraulic oil cleanliness and correct pressure settings is essential for stable performance and component life.
Yes. The MHD106 supports air flushing as standard, and water flushing can also be used optionally for dust suppression and improved hole cleaning depending on site requirements.
The drifter requires clean, well-filtered hydraulic oil and continuous shank lubrication during drilling. Regular inspection of wear components such as bushings, seals, and shank parts, along with proper pressure and flushing settings, helps maintain drilling efficiency and extends service life.
Related Products
| Weight : | 53 Kg |
| Length : | 488 mm |
| Drill Hole Diameter: | 22-45 millimeters |
| Power Class: | 6.5 kilowatts |
| Handle Size : | R23/R25/R28 |

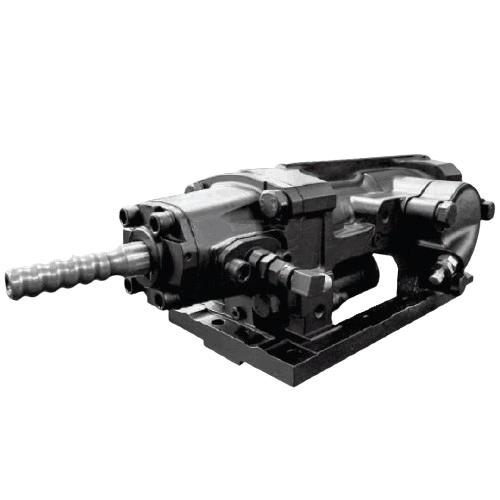

MHD100X
| Weight : | 175 kg |
| Length : | 1008 mm |
| Width including connectors : | 251 mm |
| Height: | 223 kW |
| Height over drill center : | 88 mm |
MHD1838HD+
| Weight : | 210 kg |
| Drilling Hole Diameter : | 43 -64 mm |
| Reaming Hole Diameter : | 76 -127 mm |
| Power Class: | 20 kW |
| Percussion Rate : | 67 Hz |

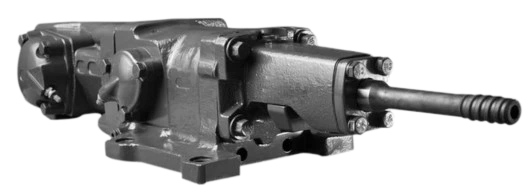

MHD5
