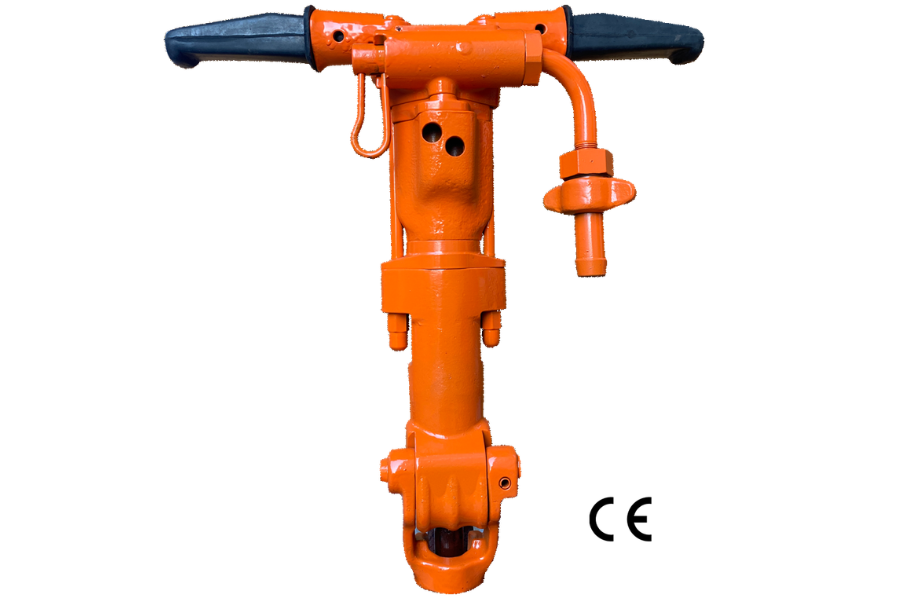

 MH505L – Pneumatic Jack Hammer





The MH505L sinker drill is a time-tested and proven choice. This low-cost pneumatic jackhammer dominates the markets of India and Brazil due to its high return on investment and is designed for drilling through granite, hard faced rock, quarry drilling, bench drilling, and drilling secondary holes for blasting. It has built-in air flushing which facilitates the removal of drill chipping to reduce the risk of drill jamming (the MH504W is its water flushed counterpart which is used for dust suppression applications). This is able to drill holes up to depths of 6 metres. This drill also has a robust kick-latch retainer for fast and convenient tool change


Key Features:


• Specially designed for drilling through granite, hard faced rock, quarry drilling, bench               drilling,and drilling
secondary holes for blasting.
• Built-in air flushing to reduce the risk of drill jamming
• Able to drill holes up to 6 metres deep
• Robust kick-latch type retainer for convenient tool change
• Market leader in India & Brazil



Specification
Metric Imperial
Length 565 mm 22”
Weight 24 kg 53 lb
Stroke Length 59 mm 2 3⁄8”
Impact Rate 2040 BPM
Air Consumption 58 l/s 123 cfm
Revolutions 215 RPM
Penetration Rate 425 mm/min 17 in/min
Piston Diameter 65 mm 2 1⁄2”
MAx Drilling Diameter 40 mm 1 5⁄8”
Max Drilling Depth 6000 mm 20’
Ordering Part Numbers:
Air Connection 5/8” 14 BSPT 3/4” 14 BSPT
Chuck size 22 mm X 108 mm 5111 109 000 2216 5111 109 000 2219
Chuck size 25 mm X 108 mm 5111 109 000 2516 5111 109 000 2519
