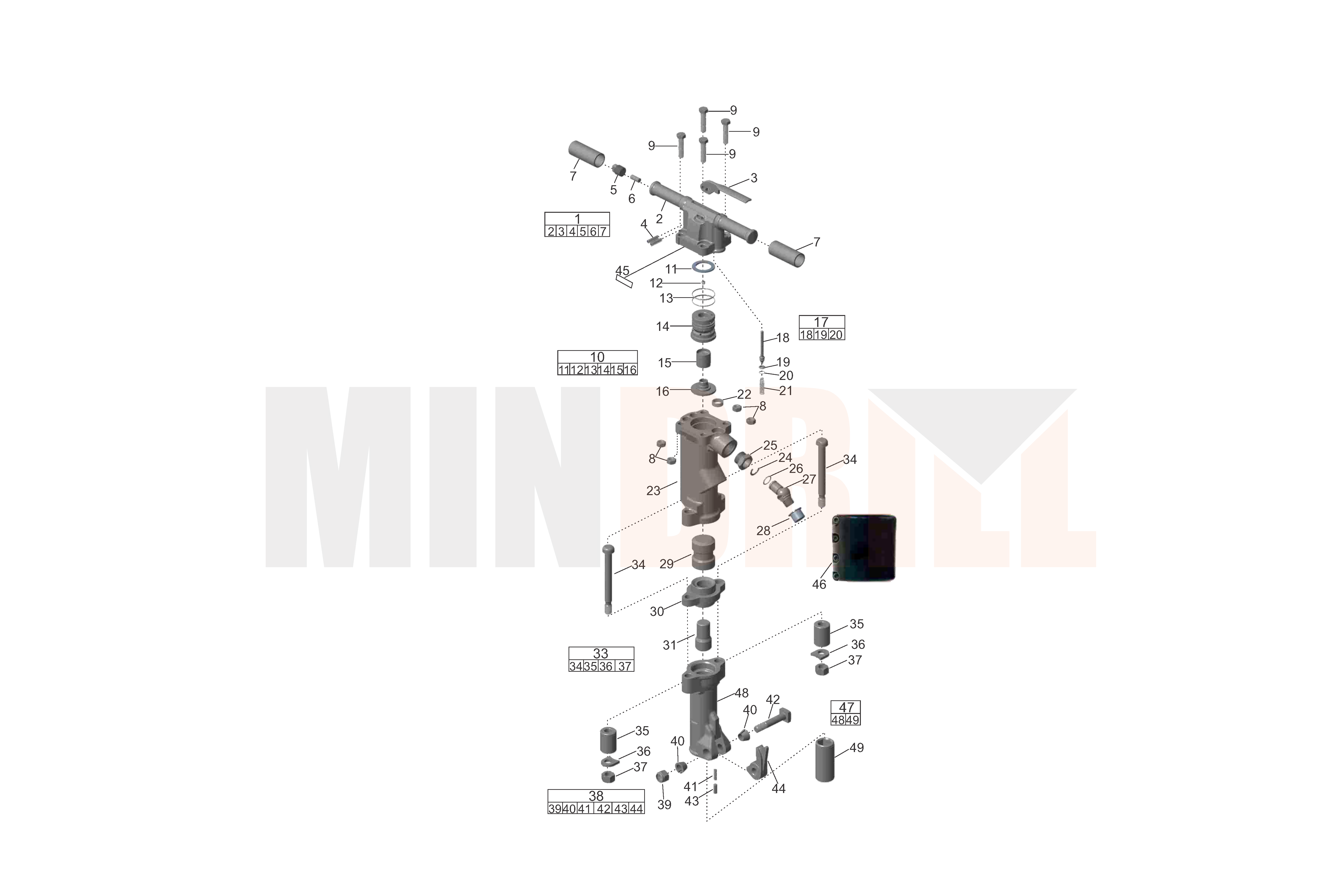

SN Ref. Part No. Mindrill Part No. Descriptions Qty
1(2-7) 3303005383 5122 106 001 80 Backhead, complete 1
2 – 5122 106 001 Backhead 1
3 F814725 5122 102 003 Trigger 1
4 R133433 5122 102 004 Spring pin 2
5 R075031 5122 103 001 Plug – oil 1
6 C036901 5122 103 007 Oil wick or Plug Oil Regulator 1
7 3303005276 5122 106 007 Rubber grip 2
8 0261109953 5122 106 008 Nut 4
9 0147195960 5122 106 009 Screw 4
10(11-16) 3303005384 5122 106 011 80 Valve case, complete 1
11 3303005311 5122 106 011 Washer 1
12 P009876 5122 103 014 Plug – valve case 1
13 R049854 5122 103 013 O-ring 2
14 R047958 5122 103 004 Valve case 1
15 3303005327 5122 106 015 Valve 1
16 R047960 5122 103 011 Lid – valve case 1
17(18-20) R092894 – Valve – throttle, complete 1
18 – 5122 102 015 Valve – throttle 1
19 R098368 5122 102 016 Seal – throttle valve 1
20 R098369 5122 102 017 Retaining ring – throttle valve 1
21 R005717 5122 102 018 Spring – throttle valve 1
22 R047965 5122 103 017 Seal – cylinder 1
23 – 5122 106 023 Plug 1
24 3303005271 5122 106 024 Cylinder 1
25 3310104400 5122 106 025 Nut – swivel 1
26 3310105900 5122 102 021 50 Lock washer 1
27 0663212600 5121 141 038 O-ring 1
28 3303005012 5122 102 022 Swivel 1
29 R047967 5122 103 024 Piston 1
30 R047966 5122 103 027 Bushing – anvil block 1
31 R085260 5122 103 028 Block – anvil 1
32 3310160200 5122 106 032 Label 1
33(34-37) 3303005385 5122 106 033 80 Side bolt, complete 1
34 R047970 5122 103 026 Bolt – Fronthead 2
35 3303005312 5122 106 035 Buffer 2
36 R090584 5122 103 032 Lock washer – Fronthead nut 2
37 R005721 5122 103 033 Nut – Fronthead bolt 2
38(39-44) 3303005388 5122 106 044 80 Latch, complete 1
39 P008999 5122 103 037 Nut 1
40 R076562 5122 103 038 Bushing – retainer latch 2
41 R086982 5122 102 035 Spring – plunger 1
42 R076853 5122 103 039 Bolt – latch 1
43 R092497 5122 102 036 Plunger – latch 1
44 3303005365 5122 106 044 Latch – retainer 1
45 – 5121 109 055 Data plate 1
46 – 5122 103 041 50 Muffler (Optional) 1
47(48-49) 3303005391 – Fronthead, complete 1
48 – 5122 106 047 Fronthead (Hexagon, 32 mm Hexagon, 11/4 in.) 1
49 R040635 5122 106 048 Bushing – Fronthead (Hexagon, 32 mm Hexagon,11/4 in.) 1
