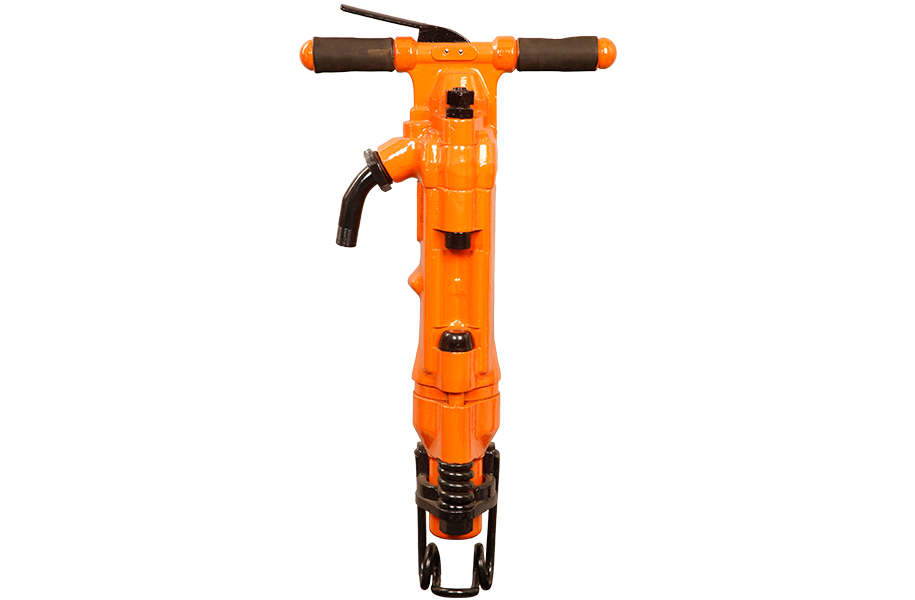

MPB117 Paving Breaker
The MPB117 pneumatic pavement breaker from Mindrill are useful for heavy breaker applications. They have a high blow impact, especially when their low weight and low air consumption are taken into consideration. The drill also has an integral oiler system to provide lubrication and is available in two shank sizes.
Ordering Part No.
Ordering Part No. Without Silencer:
| Part No. | Chuck Size |
|---|---|
| 5112 101 000 | 32 x 160 mm (1¼ in x 6 ¼ in) |
Ordering Part No. With Silencer:
| Part No. | Chuck Size |
|---|---|
| 5112 101 000 51 | 32 x 160 mm (1¼ in x 6 ¼ in) |
Technical Specifications:
| Weight : | 35 kg |
| Length : | 740 mm |
| Chuck Size: | 32 × 160 mm |
| Hose Connection: | 19 mm |
| Air Consumption : | 35 l/s |
| Impact Rate: | 1080 BPM |
Key Features
Our Certifications
Related Products
| Weight : | 35 kg |
| Length : | 740 mm |
| Air Consumption : | 35 l/s |
| Hose Connection : | Ø 19 mm |
| Impact Rate: | 1080 BPM |
MPB117
| Weight : | 38 kg |
| Length : | 710 mm |
| Air Consumption : | 41 l/s |
| Piston Diameter : | 57.15 mm |
| Hose Connection : | Ø 19 mm |
MPB117L
| Weight : | 20 kg |
| Length : | 540 mm |
| Air Consumption : | 26.5 l/s |
| Chuck Size : | 25 x 108 mm |
| Hose Connection : | 19 mm |
| Impact Rate: | 1400 BPM |
MPB1210
| Weight : | 31 kg |
| Length : | 680 mm |
| Air Consumption : | 32 l/s |
| Hose Connection : | Ø 19 mm |
| Stroke Length : | 212 mm |
| Impact Rate: | 1300 BPM |
MPB1230
| Weight : | 37.5 kg |
| Length : | 735 mm |
| Air Consumption : | 40 l/s |
| Hose Connection : | 19 mm |
| Impact Rate: | 1300 BPM |
MPB1240
| Weight with silencer : | 31 kg |
| Lenght: | 680 mm |
| Weight without silencer : | 29 Kg |
| Air pressure : | 6 Bar |
| Air consumption : | 34.5 l/s |
MPB1260
| Weight with silencer : | 39 kg |
| Weight without silencer : | 37 kg |
| Length : | 730 mm |
| Air pressure : | 6 bar |
| Air consumption : | 43 l/s |
| Blows per minute: | 1100 |
MPB1290
| Weight : | 15 kg |
| Length : | 564 mm |
| Air Consumption : | 23.3 l/s |
| Piston Diameter : | 44.45 mm |
| Piston Stroke: | 85 mm |
| Hose Size : | 12.7 mm |
MPB30
