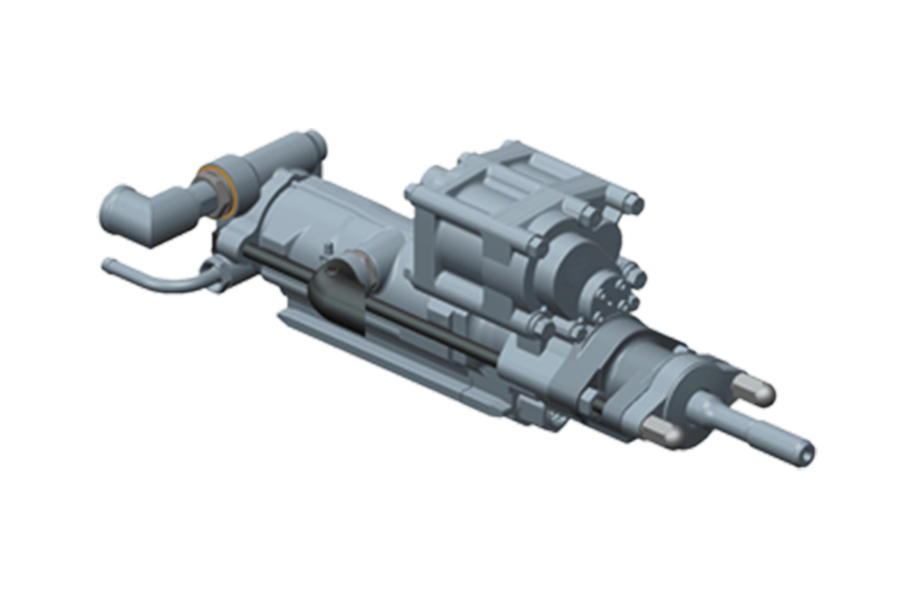

MD36IR Drifter Rock Drill



Mindrill MD36IR Drifter Rock Drill is a robust build machine that is designed specifically with a powerful gear type motor that gives high torque for use in a wide variety of conditions. These are premium quality rock drills that come with an independent hammer and rotation mechanism that allows operators to make an optimal setting for every situation along with coupling and uncoupling of the drill.

Benefits of MD361R Rock Drilling Machine:

MD36IR Rock Drilling Machine is exclusively for remote control applications. It is mounted on a feed system and capable to drill 144mm diameter bore. In case of underground applications, the machine can be mounted on either screw or chain feed cradles for development of tunnels, fan hole, ring drilled blast holes and long holes for water drainage. It can also be mounted on wagon drill and used for surface jobs like quarry benching, pre-splitting holes, and general purpose drilling. MD36IR Rock Drills Drifter Parts are interchangeable with S36IR Rock Drill Boart Longyear.

MD36IR

Technical Specifications:

Length : 1015 mm
Weight : 150 kg
Stroke Length : 86 mm
Impact Rate : 1630 BPM
Air Consumption : 233 l/s
Rotation Torque @ 215 RPM : 320 N-m
Bore Diameter : 35 mm – 89 mm
Max Reamed Diameter : 127 mm
Max Drilling Depth : 46 m
Air Connection : 1 1⁄4” BSP
Rotation Motor : 1” BSP
Download Flyer


Key Features

  • Manufactured with superior quality raw materials.
  • Market leading design.
  • Internally distributed lubrication system using atomized oil to ensure long life.
  • Perfect for mounting on the feed control system.
  • Low air consumption.
  • High penetration rate.
